Large Fish Feed Production Line
Basic information:
Application: Large and medium fish feed and pet food manufacturers, big fish and pet farms, etc.
Capacity: 3ton/h-12ton/h
Certification: CE, ISO9001, SGS
Delivery Time: Around 30 days
Description
Large-scale fish feed production line is used to produce floating and sinking fish feed, dry and wet pet food. It works with simple operation, accurate parameter control. The products can be finished at the stipulated temperature, pressure, humidity, and time. Owing to the reasonable design, special materials, stability, repairs can be guaranteed and ensured. The various shape and tastes must meet the different requirements of fish feed. The size of the diameter can be adjusted from 0.5mm to 15mm, and the shape can be changed according to the customer’s demand. We provide formulas according to market or client demand.

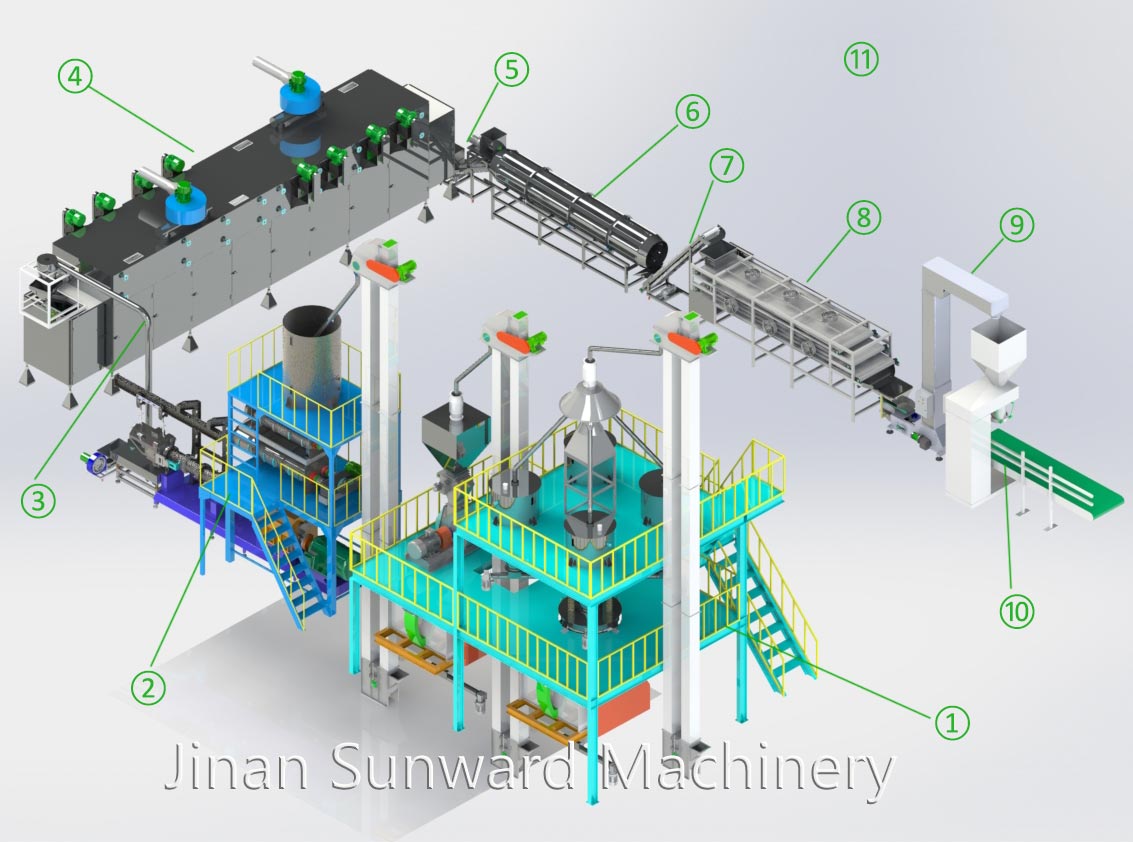

Flow chart:
① Raw material processing system---②Extrusion system---③Air conveyor---④Dryer---⑤Hoister---⑥Flavoring machine---⑦Hoister---⑧Cooling machine---⑨Z-shape hoister---⑩Packing machine
The raw material processing system is used to pulverize, weigh and mix raw material.
The extrusion system is a large feed extruder that is used to cure, puff, and form the raw materials (There is a pre-conditioner contained in the extruder that is used for pre-conditioning and pre-heating the raw materials through steam, the raw materials are softened, which is more conducive to molding, and at the same time reduces the wear and tear of the raw materials to the extruder machine).
The air conveyor is used to deliver fish feed from the extruder to the dryer.
The dryer is used to dry fish feed. According to the different energy sources, we have electric dryers, steam dryers, oil/gas dryers for you to choose from.
The hoister is used to deliver fish feed from the dryer to the flavoring machine.
The flavoring machine is used to spray the surface of the fish feed with drugs for treating fish diseases and attractants, etc.
This is another hoiser that is used to deliver fish feed from the seasoning machine to the cooling machine.
The cooling machine is used to cool fish food before packing.
The Z shape hoister is used to deliver fish feed from the cooling machine to the packing machine.
The packing machine is used to pack fish food in different bags. We have fully automatic and semi-automatic packing
Features:
1.Pre-curing treatment function. Not only improving the maturation of the pet food but also increasing the output.
2.frequency speed controlling with high automation and stable performance.
3. The screws are made of alloy steel and special craft, durable usage, high pressure, the screw life is longer. Adopting the building block structure and combining willingly according to the different demands.
4. The forced lubrication system, can guarantee the equipment transmission life longer.
5. Auto-temperature control system makes the temperature control more direct viewing and the parameter more precise.
6. Self-cleaning, when stopping, it can be cleaned without disassembling.
7. According to different screw design rates to full different technology requests.
8. This equipment has a wide material, multi-shape products, and flexible collocations. We can produce the different products according to the different models and collocations.
Technical Parameters:
| Model | Capacity | Installed Power | Main Motor Power | Dimension |
| 120H | 3ton-5ton/h | 290kw | 260kw | 45×2.5×3.5m |
| 140H | 5ton-8ton/h | 350kw | 315kw | 60×3.0×3.8m |
| 160H | 8ton-12ton/h | 600kw | 560kw | 78×3.0×4.2m |
Fish feed made by our equipment:
Pet food samples:
Video:

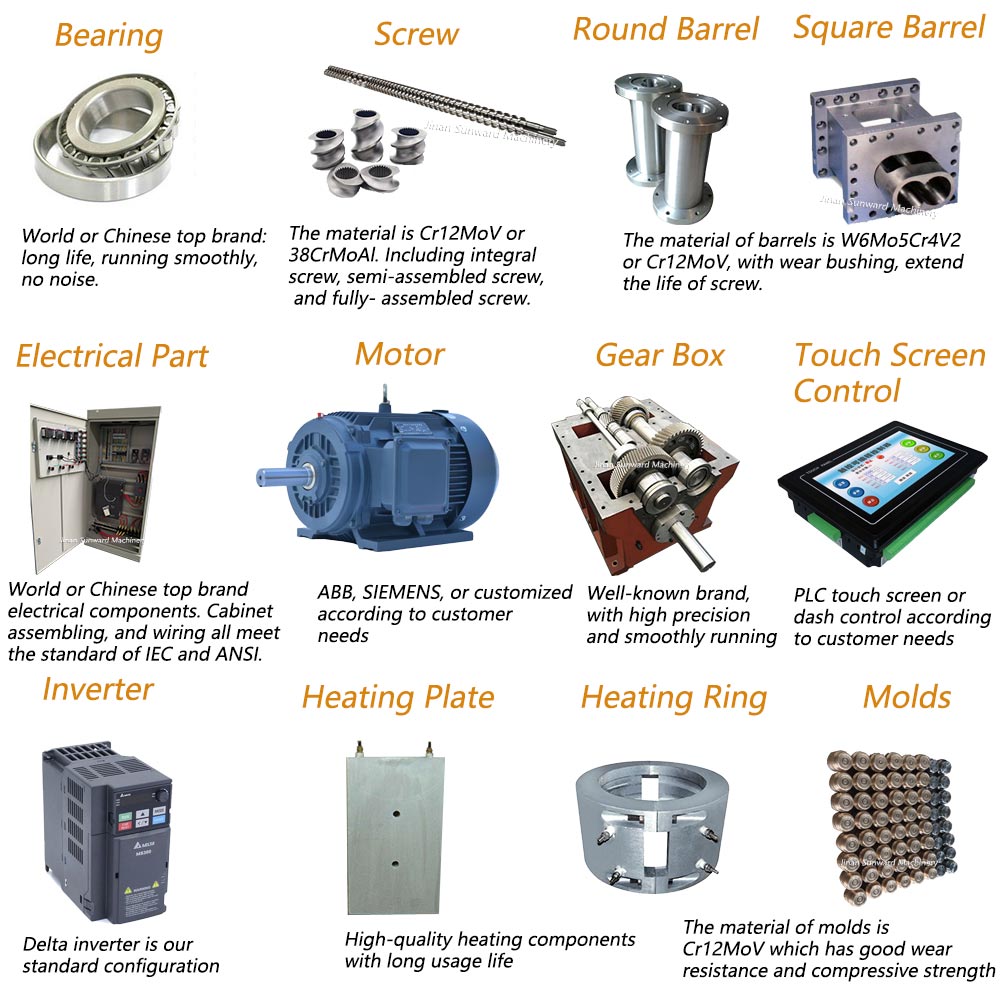

Parts:

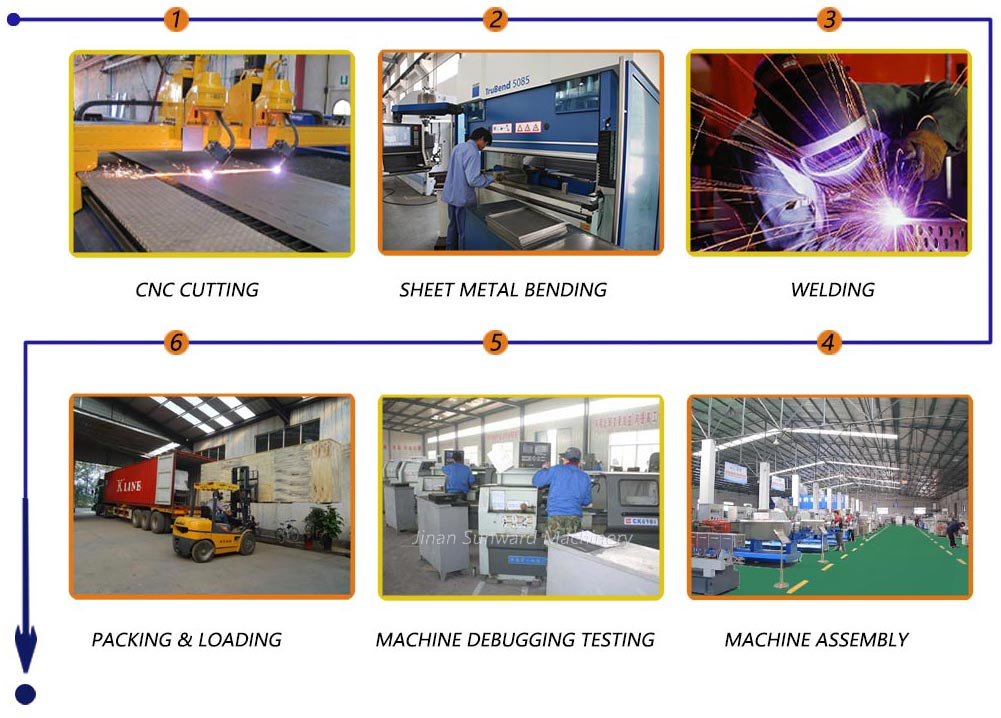

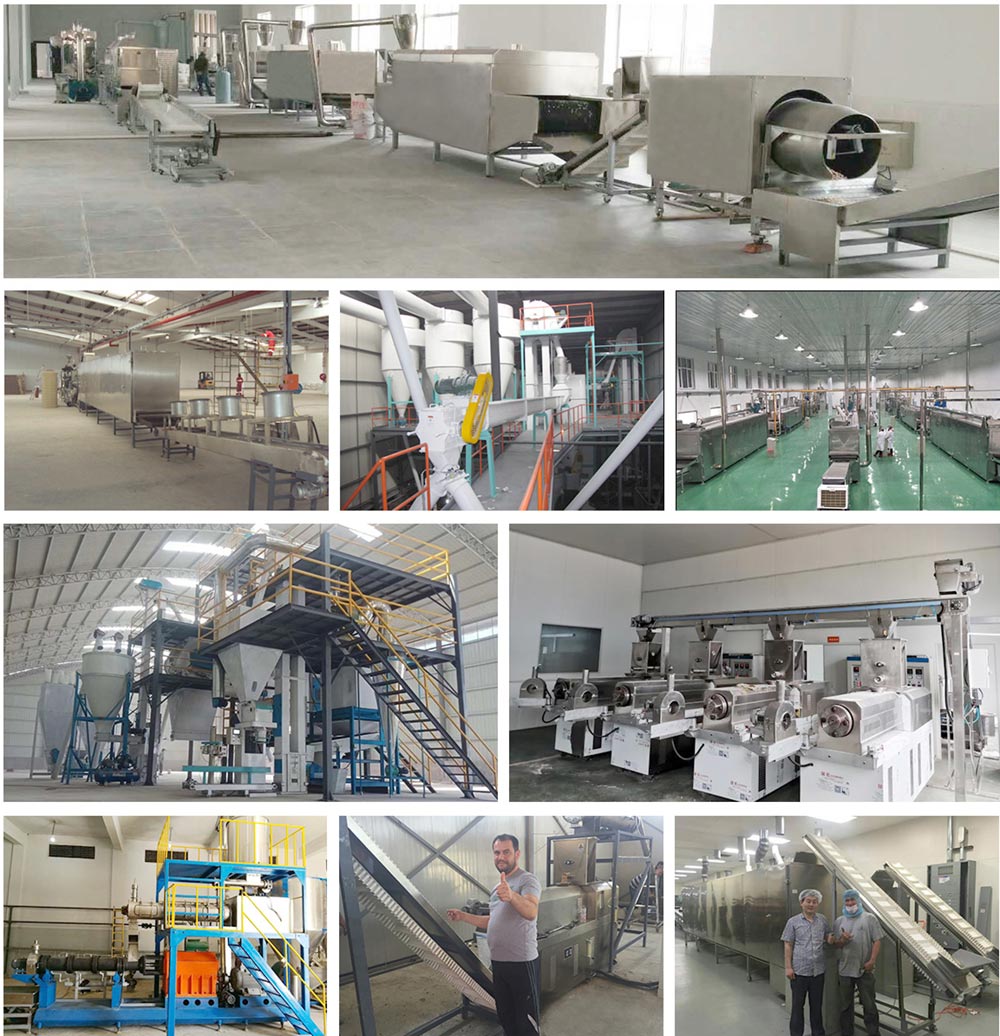

Production process:

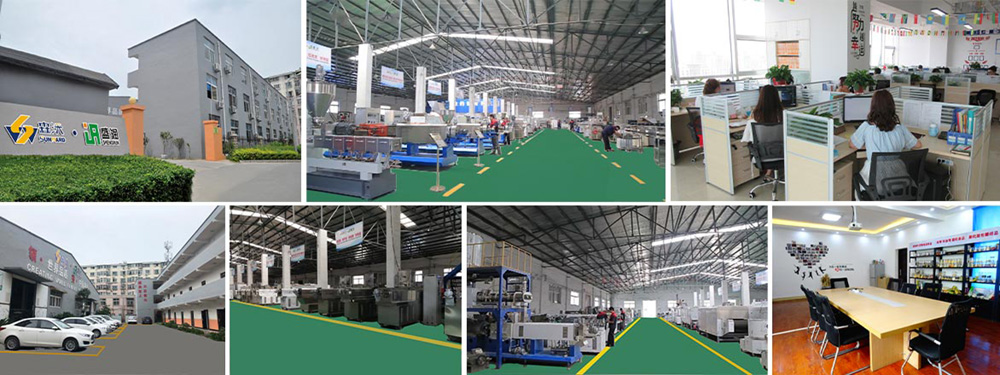

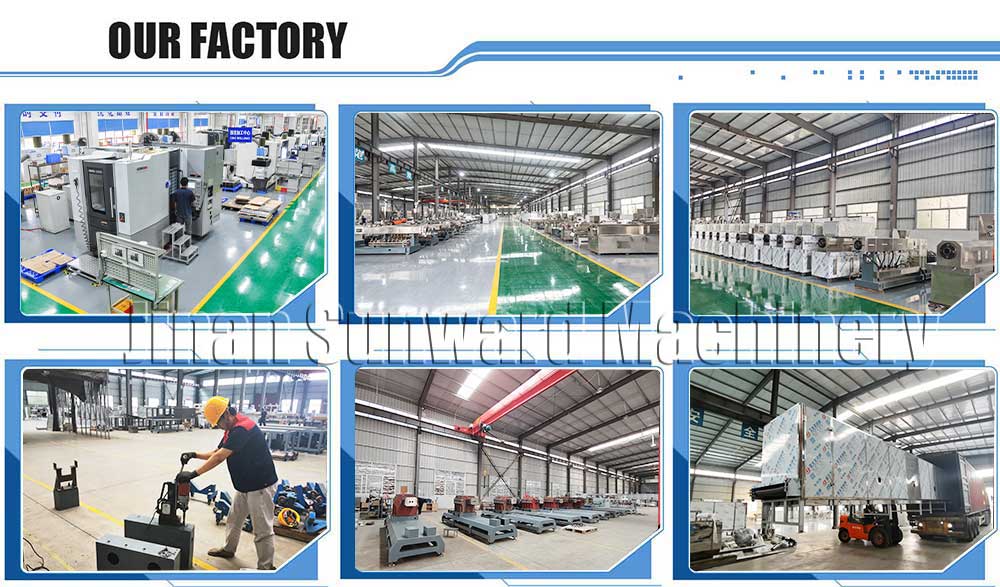

Our factory:
Our team:
Projects:

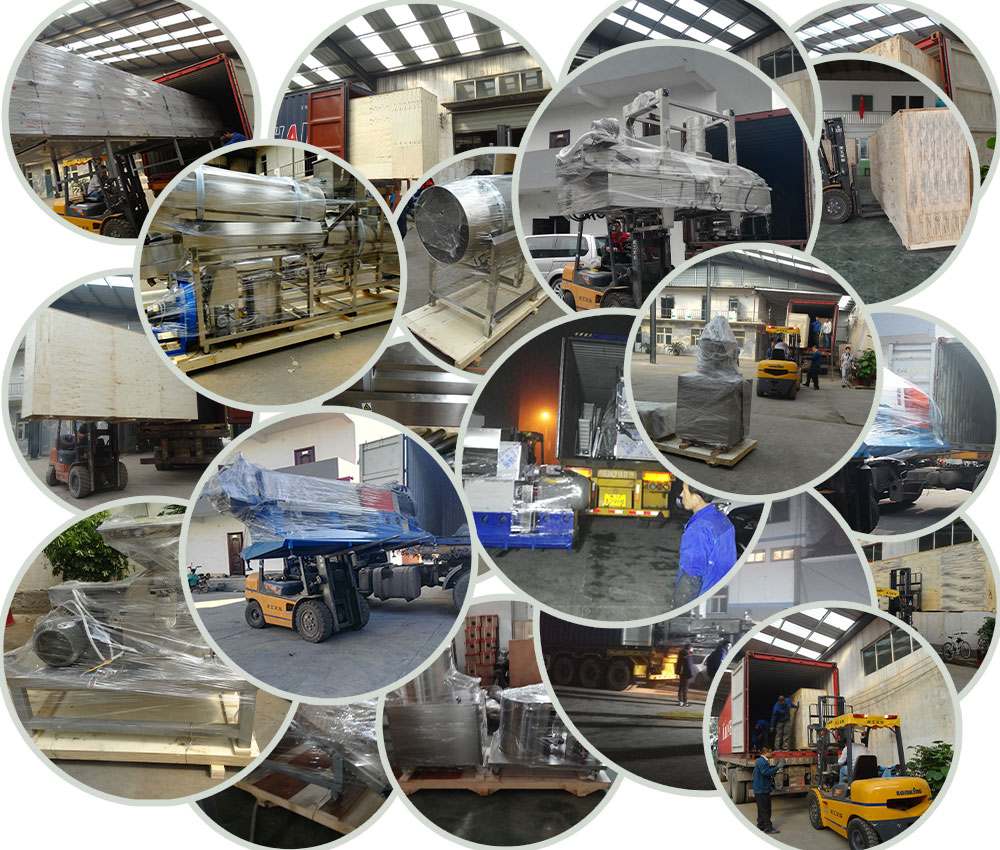

Packaging and delivery:
Exhibition:
Certification:
Our company has obtained internationally recognized CE certification, SGS certification and ISO9001 certification very early, and has obtained a number of invention patent certificates and other provincial and municipal honor certificates.
FAQ:
Q: How long is your guarantee time?
A: One year after commissioning.
Q: How is the installation?
A: We will dispatch our technicians to your factory to guide you installation and commissioning work and training your operator.
Q: If we show your our layout of the factory, can you help to design the whole process line?
A: Of course, our experienced engineers and technical employee can help you to arrange the layout and installation of the whole production line based on your real situation.
Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock, or it is 20-25 days if the goods are not in stock, it is according to quantity.
Q: Will you help us if we accrue any problems in future production?
A: Yes, we will always be at your service. You can contact us via mobile, WhatsApp, Wechat, and so on. We will help solve your problems as soon as possible.
